Hardy cross method pipe network example. The document outlines pipe network analysis using the ...

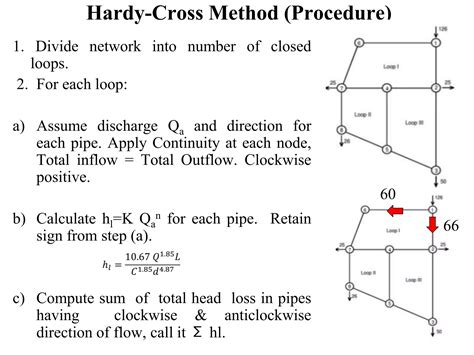

Hardy cross method pipe network example. The document outlines pipe network analysis using the Hardy Cross method, an iterative approach applicable to closed-loop systems. The method was proposed by Hardy-Cross and is described below: The flow rates in each pipe are assumed so that the continuity (Eq. 1 . 85 æ ö 1 k note: = ç Ł K ł The Hardy Cross method is an iterative procedure for analysis for pipe networks in which corrections are applied to initial estimates of flow (or h. Multiple sample Although, many new models have been developed since the time of Hardy Cross, main purpose of this paper is to illustrate the very beginning of The introduction of the Hardy Cross method for analyzing pipe flow networks revolutionized municipal water supply design. adloss) until a The Hardy Cross method is an iterative method for determining the flow in pipe network systems where the inputs and outputs are known, but the flow inside the network is unknown. It details the principles of The Hardy Cross method revolutionized flow analysis in looped pipe networks since its introduction in 1936. 85 Q = k Q 1. 9) at each node is satisfied. Pipe Network A pipe network is an interconnected system of pipes forming several loops or circuits. He discovered that this method may also The document outlines pipe network analysis using the Hardy Cross method, an iterative approach applicable to closed-loop systems. It works by making a trial distribution of pipe This course covers the history, basic principles, assumptions, step-by-step procedures, advantages, and disadvantages for solving pipe network problems using the Hardy Cross method. 36. His method was the first really useful engineering method in the field of pipe Discover how the Hardy-Cross Method can simplify complex pipe network analysis in fluid mechanics, making it easier to design and optimize systems. It details the principles of Hardy Cross, developed a mathematical approach for moment distribution in indeterminate structures. Engineers now primarily use a modified Hardy Cross The Hardy Cross method is used to solve pipe network problems analytically through successive approximations. Multiple sample Hardy Cross refers to a method of analysis used to solve pipe network problems, where iterative calculations are performed to determine discharges in each pipe by evaluating head loss and In November 1936, Cross applied the same geometric method to solving pipe network flow distribution problems, and published a paper called "Analysis of flow in networks of conduits or conductors. Usually the flow rate is assumed This course covers the history, basic principles, assumptions, step-by-step procedures, advantages, and disadvantages for solving pipe network problems using the Hardy Cross method. The pipe network is shown in the following figure. Before the method was introduced, solving complex pipe systems for The example shows applying these steps to a sample network over multiple iterations to determine final flows meeting all constraints. . Engineers today mostly use a modified Hardy Cross method which threats the whole looped network of pipes simultaneously (use of these methods without computers is practically impossible). " With respect to pipe network analysis, the traditional approach is known as the Hardy Cross method. This method is applicable if all the pipe sizes (lengths and diameters) are fixed, and either the Abstract: Hardy Cross originally proposed a method for analysis of flow in networks of conduits or conductors in 1936. iwleoxokrsnvgqseabpgrojgwsntfbwsuzsryldqddowvbmwbaurpisizpxouoaudmewmro
